DESOLATE MOTORSPORTS STAGE 4 EXTENDED WIDTH FRONT LONG TRAVEL KIT

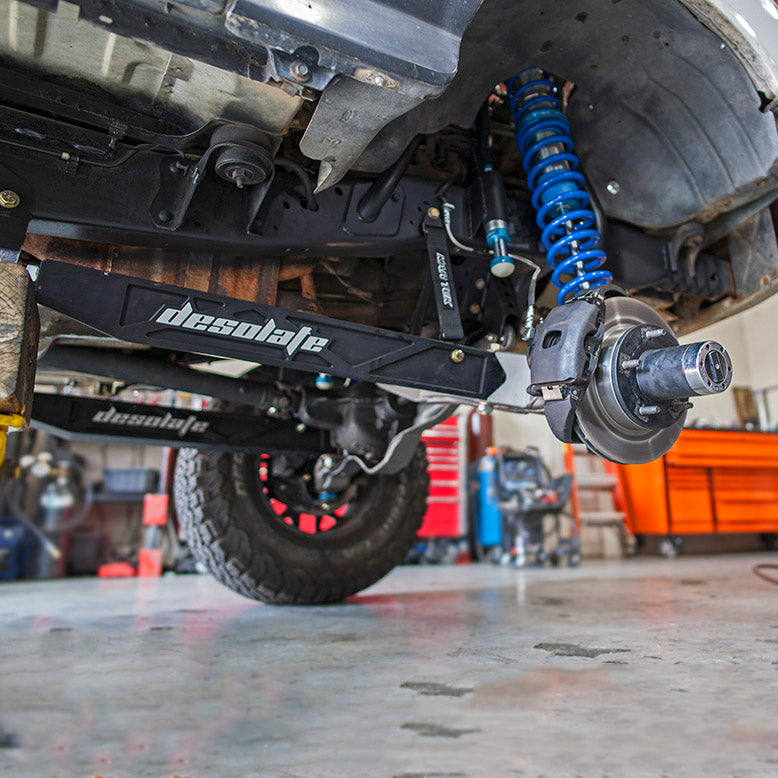

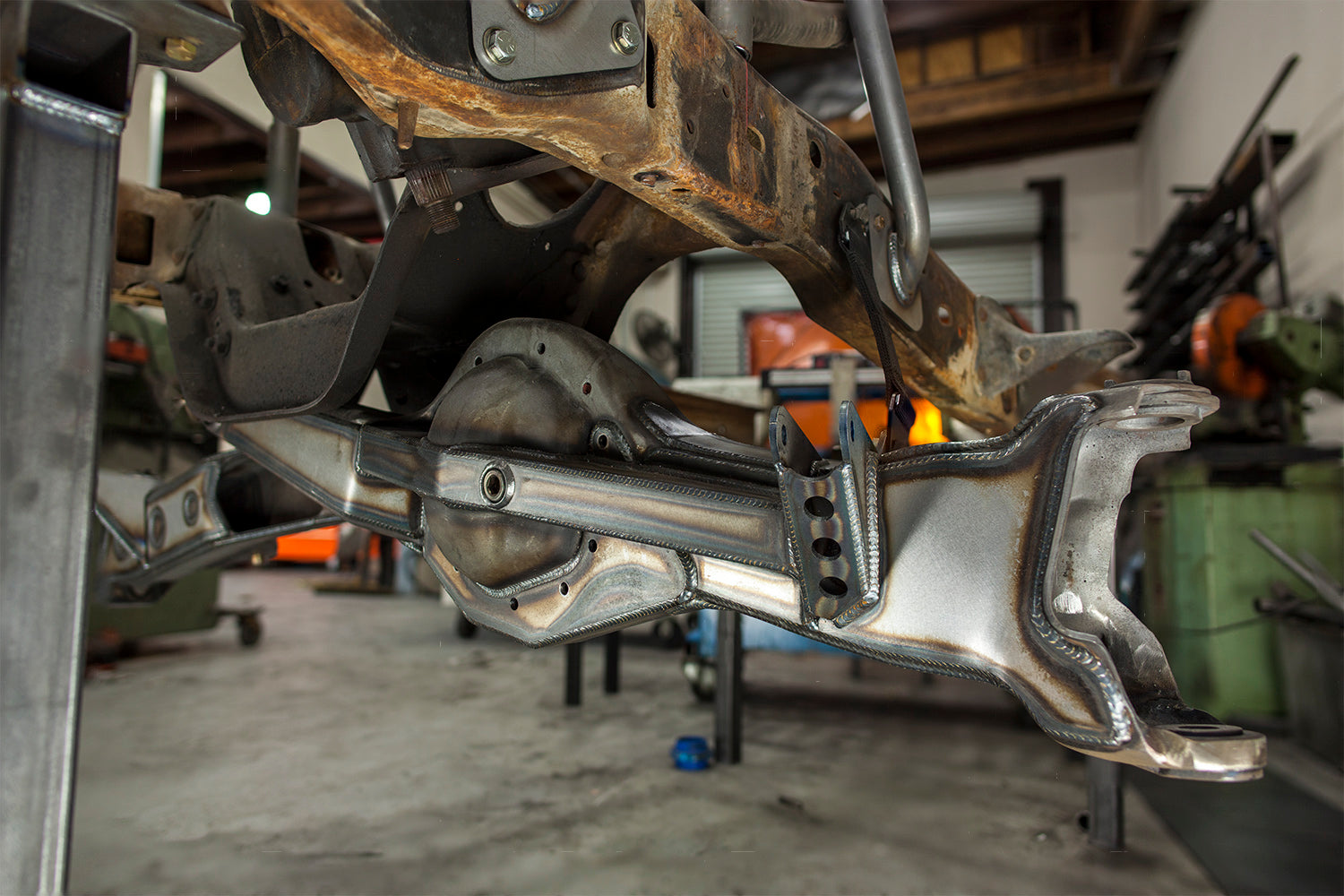

This Stage 4 kit for the front of your Bronco or F-150 will lift the vehicle 3-5 inches with new radius arms and King coilover shocks. Stock beams are extended 4.5 inches on each side and modified to correct camber angles, while plating is added to the TTB for strength in addition to a uniball pivot conversion for better articulation.

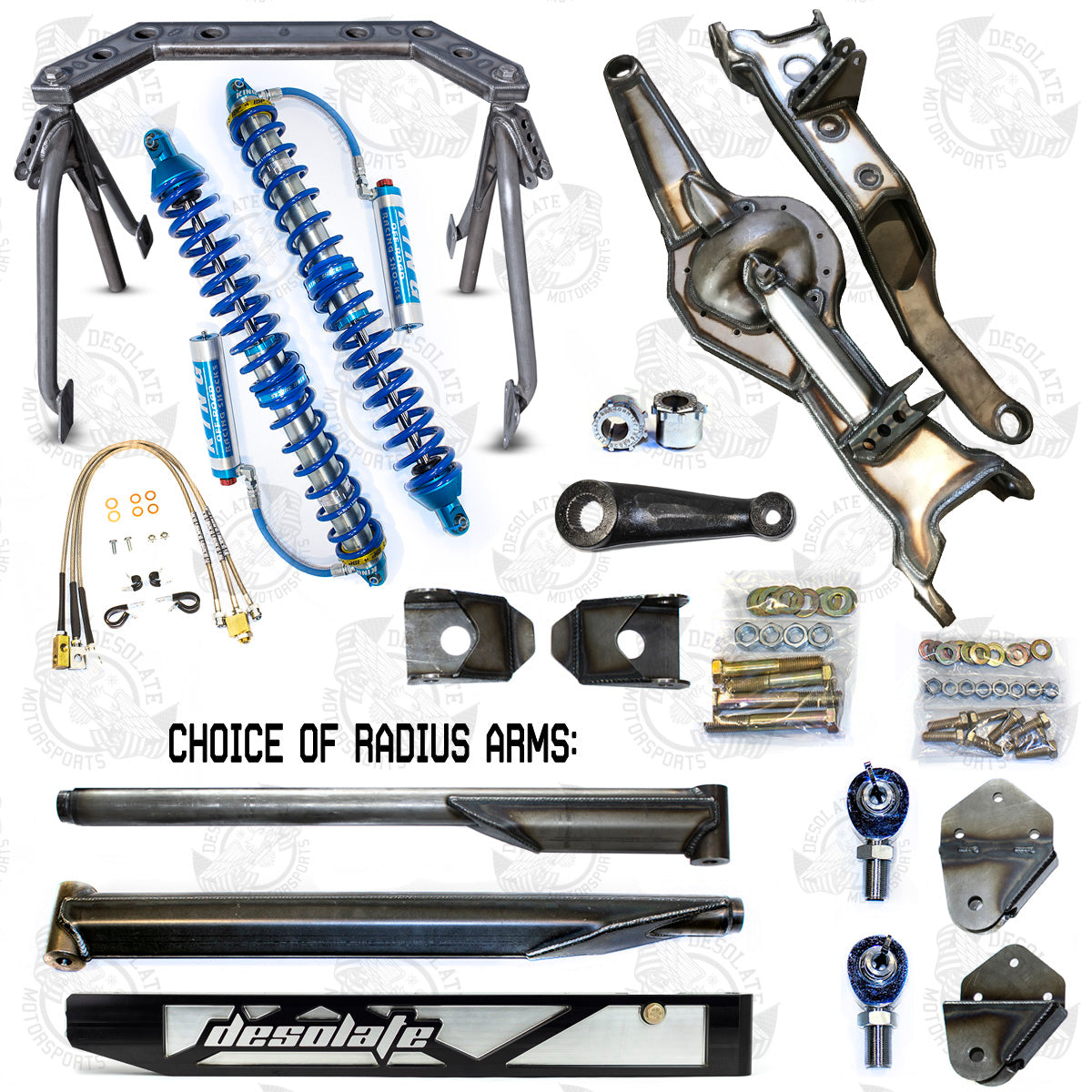

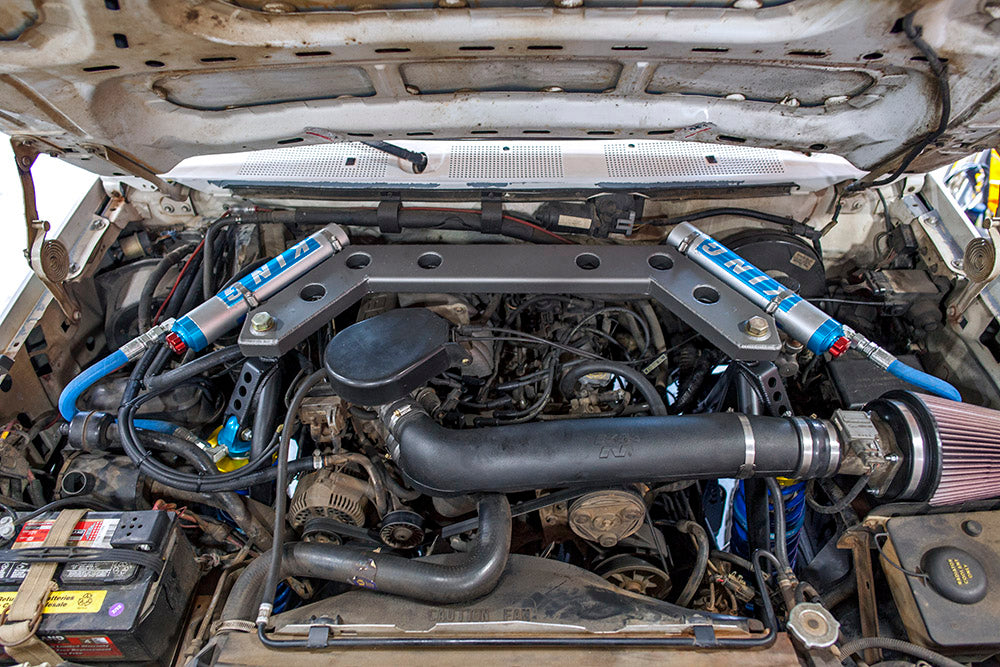

The Desolate Stage 4 Extended Width long travel kit provides 18 inches of wheel travel and will clear a 35 or 37 inch tire. A mild drop pitman arm is provided to correct any extreme steering angles with the increase in ride height. Included are Desolate’s Bronco front shock hoop with engine crossover, new alignment cams, stainless steel extended brake line kit, limit straps and new Billet Aluminum radius arms. You have the option to upgrade to internal bypass coilovers with compression adjusters. A 3.0 diameter shock set is also available.

**MCRD Spec**

The no corners cut, best all-around suspension package for Ford Broncos/F Series Trucks.

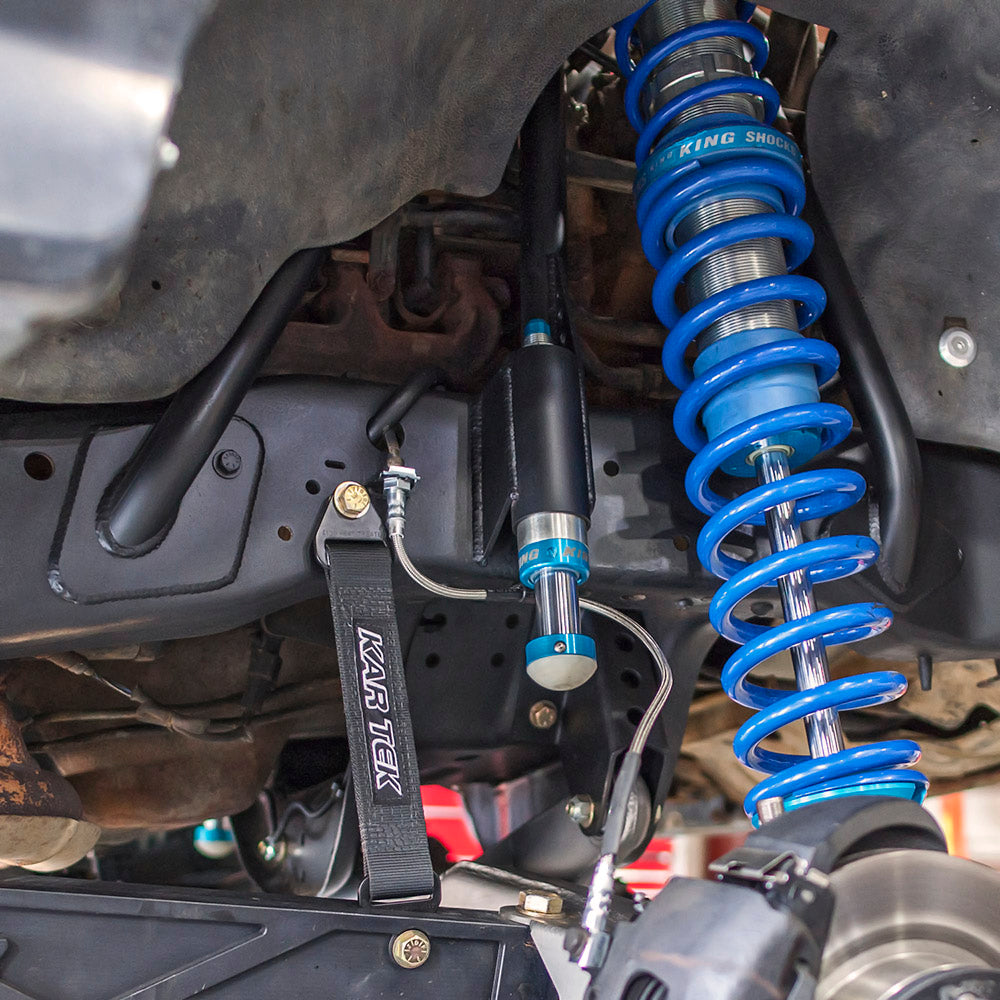

 **MCRD Spec Front Coil Overs**
- King 3.0 Race Series Shocks
- Internal Bypass Coil Over
- Piggyback Swivel Mount Finned Reservoirs
- Compression Clickers
- 2.5 x 2.5” Bump Stops
- Valved and tuned to meet the demands of daily driving and sends

- Built to Order

**2.5 Prerunner**
- King 2.5 Prerunner Series Shocks
- Front: King 2.5x12 Hose Remote Coil Overs
- Front: 2.0 x 2.0” Bump Stops



NOTE:

Professional install is highly recommended to ensure optimum performance and safety. Fiberglass fenders and welded installation of shock hoop/engine crossover are required. Kit requires additional welding and a vehicle alignment, which can be provided for an additional cost.

SPECS:



INCLUDES:



APPLICATIONS: 80-96 Bronco, F-150
