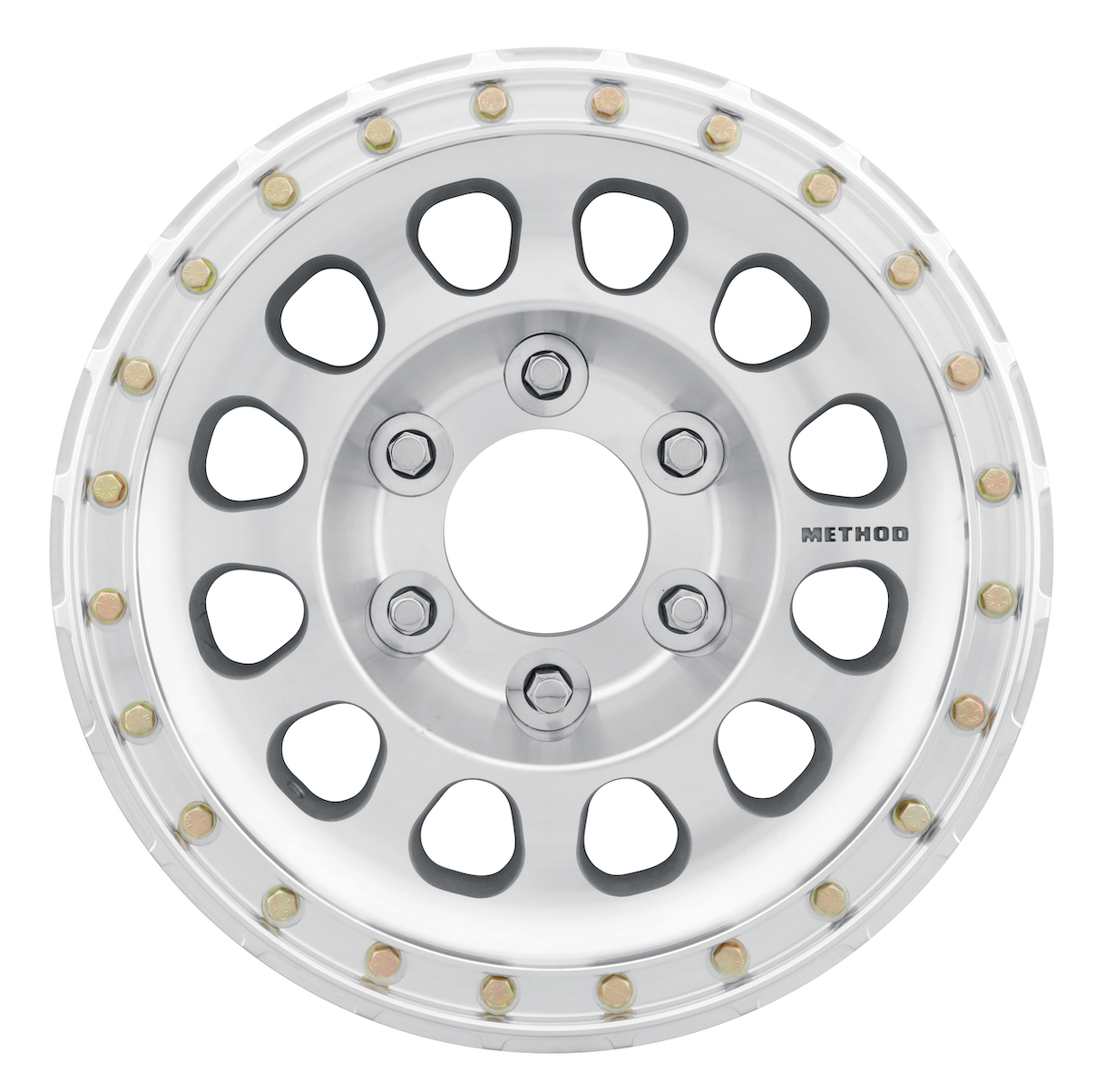

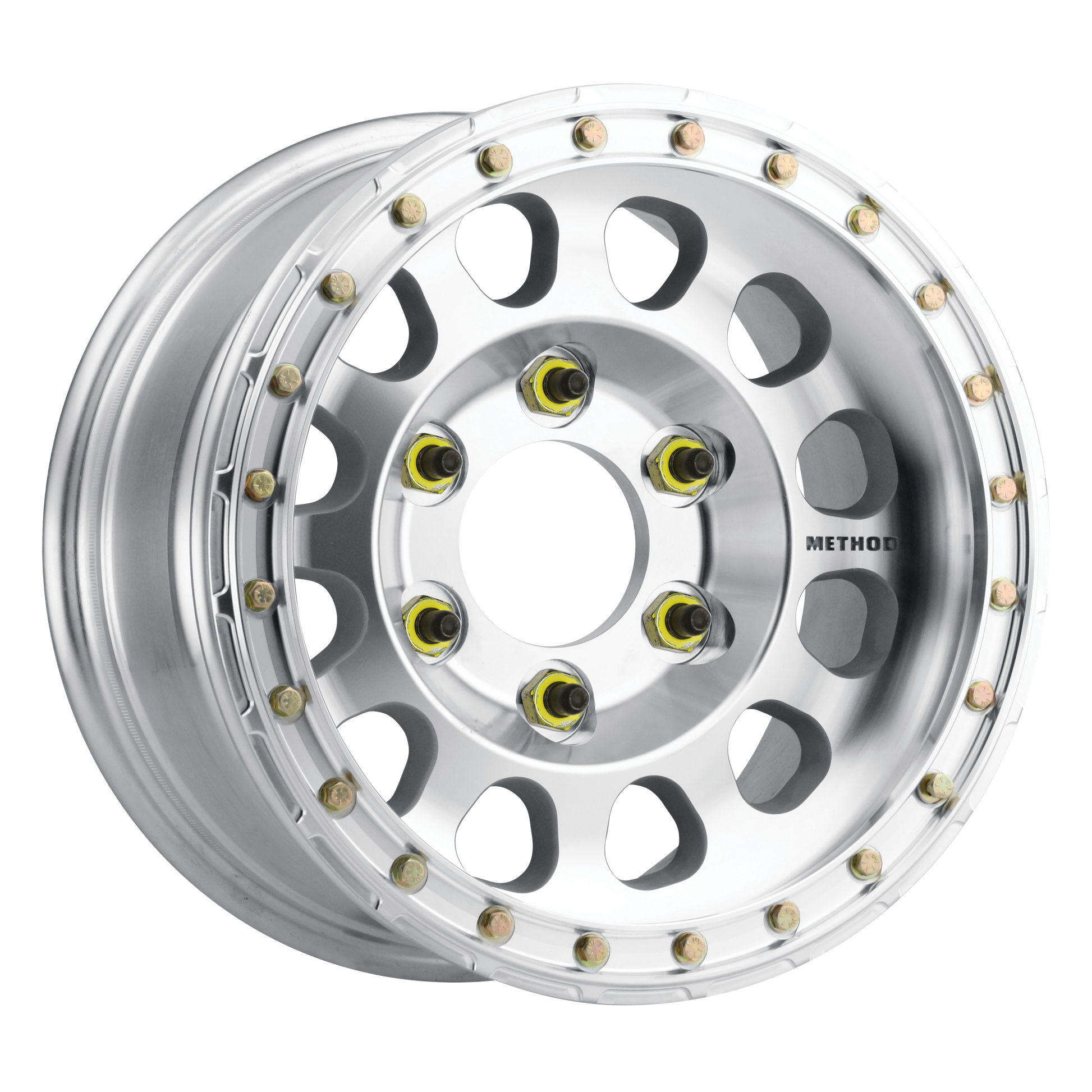

(17x9) Method 103 Beadlock

DETAILS

• Solid A356 aluminum construction with proprietary heat treatment
• Firm 12 spoke design with debossed METHOD logo
• Forged 6061 aluminum V.4 beadlock ring
• Reinforced inner lip provides extreme strength and durability
• Grade 8 zinc-plated beadlock hardware kit included
• Redundant sets of threaded beadlock hardware holes machined into wheel
• Increased room for clearance of larger brake calipers
• Super strong 2700 - 4000 lbs. load rating

5x5.5 Specifications

• Part Number MR10379055312BR
• Wheel Diameter (IN) 17
• Wheel Width 9.0
• Bolt Pattern 5x5.5
• Offset (mm) -12
• Hub Bore (mm) 108.00
• Backside Spacing (in) 4.50
• Wheel Weight (LBS) 35.4
• Max Load (LBS) 4000

6x5.5 Specifications

• Part Number MR10379060312B
• Wheel Diameter (IN) 17
• Wheel Width 9.0
• Bolt Pattern 6x5.5
• Offset (mm) -12
• Hub Bore (mm) 108.00
• Backside Spacing (in) 4.50
• Wheel Weight (LBS) 34.0
• Max Load (LBS) 4000
