DESOLATE MOTORSPORTS STAGE 2 FRONT MID TRAVEL KIT- 4" Lift

DESOLATE MOTORSPORTS STAGE 2 FRONT MID TRAVEL KIT- 4" Lift

Regular price $2,439.99 USD
Regular price Sale price $2,439.99 USD
Sale Sold out
DESOLATE MOTORSPORTS STAGE 2 FRONT MID TRAVEL KIT

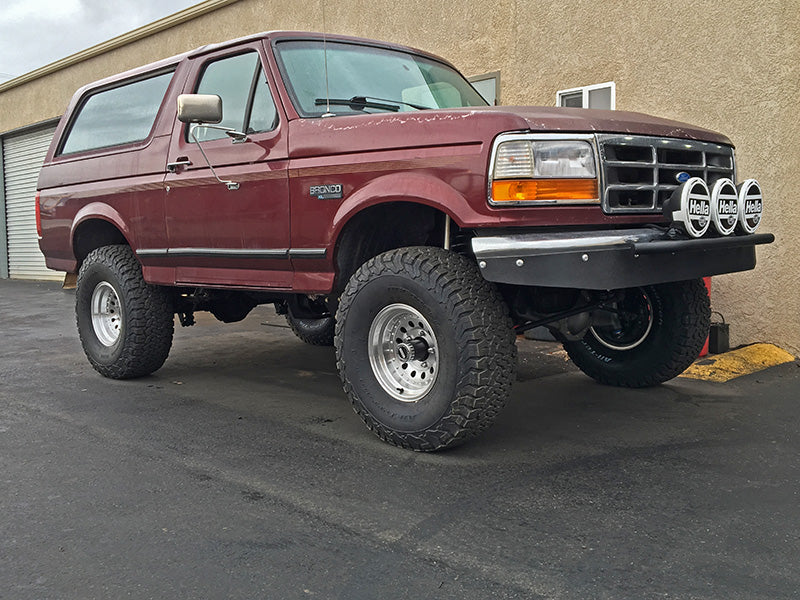

This Stage 2 kit lifts your Bronco 4 inches and increases wheel travel by 11 inches with new radius arms, shocks, and coils for a solid mid-travel setup. A cut and turn is done on the Bronco TTB and a drop pitman arm included to correct vehicle camber and remedy extreme steering angles. A set of Bilstein 5100 Series shocks paired with 4-inch lift coils are included. Also provided in this package are alignment cams, a stainless steel extended brake line kit, limit straps and High Clearance MIG welded radius arms. This kit offers a true 11 inches of wheel travel and can clear a 35-inch tire. Shock options include single Bilstein 5100, dual 5100, or single Fox 2.0 with reservoir. The dual 5100 setup requires a proper coil bucket in order to mount the shocks.



NOTE:

Requires weld-in tabs for shocks and properly located limit straps. Minor factory bumper trimming needed for 35-inch tire fitment. Kit requires additional welding and a vehicle alignment, which can be provided for an additional cost.



SPECS:

4 inches of lift
11 inches of travel
Better front end articulation
Clears 35-inch tire

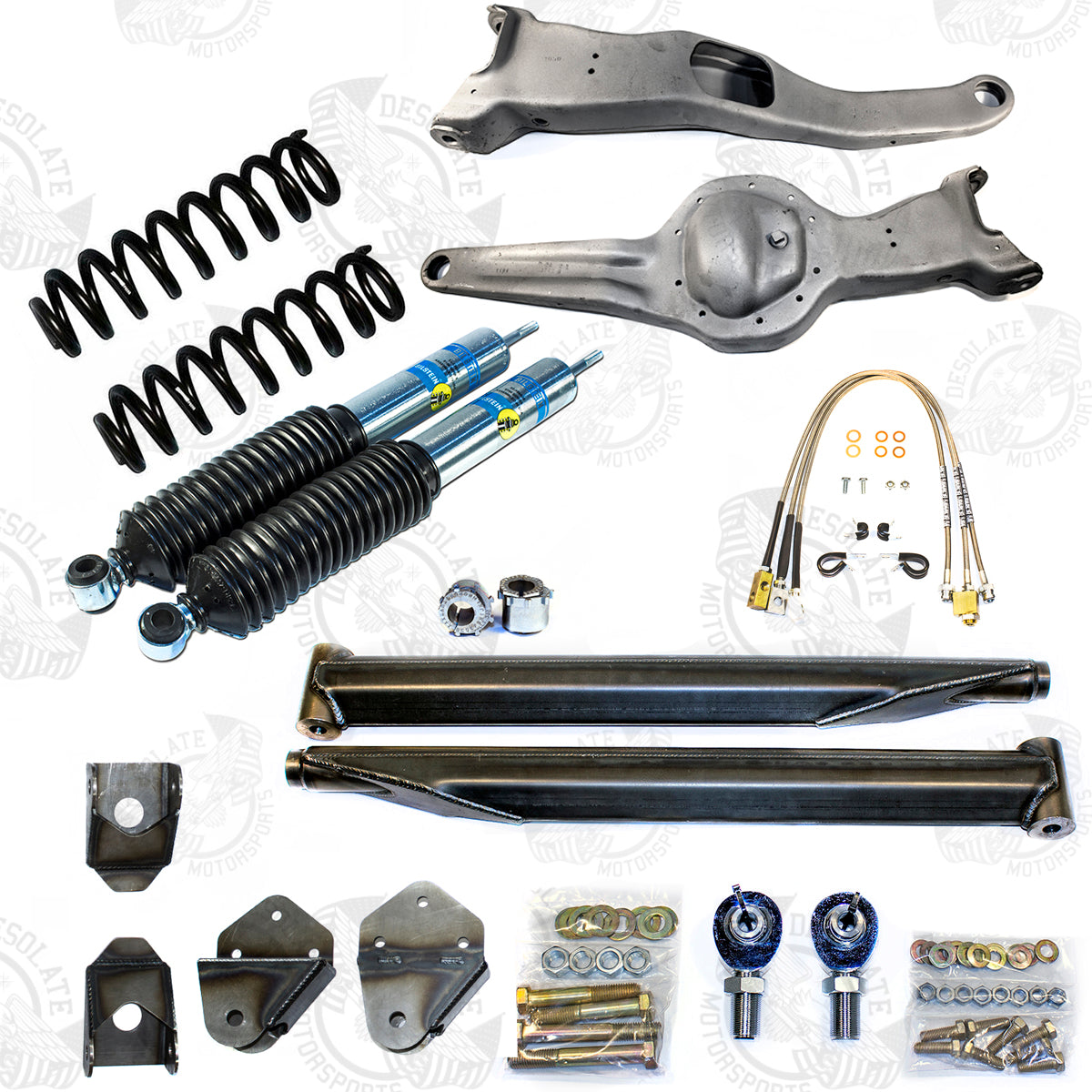

INCLUDES:

Desolate High Clearance Radius Arm (2x)
Drop Pitman Arm (1x)
4-inch Lift Coil (2x)
Choice of Shock Set
Alignment cam (2x)
Desolate Front Stainless Brake Hose Kit (1x)
Limit Strap (2x)
Stage 1 Modified TTB
All Necessary Hardware



APPLICATIONS: 80-96 Bronco
