Desolate

DESOLATE MOTORSPORTS STAGE 3 STOCK WIDTH FRONT LONG TRAVEL KIT

DESOLATE MOTORSPORTS STAGE 3 STOCK WIDTH FRONT LONG TRAVEL KIT

Regular price $4,819.99 USD
Regular price Sale price $4,819.99 USD
Sale Sold out
Shock Package
Brake Line

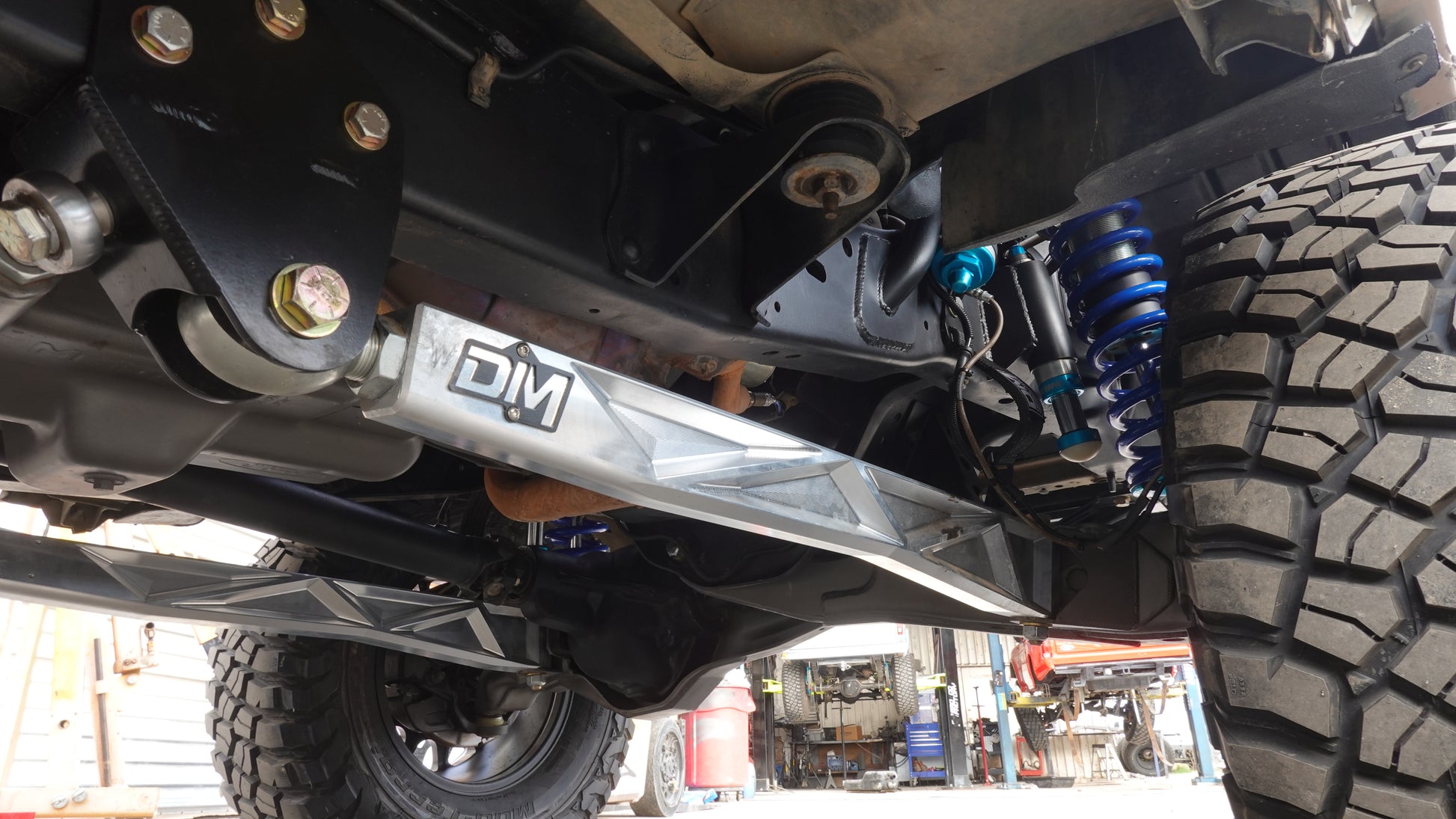

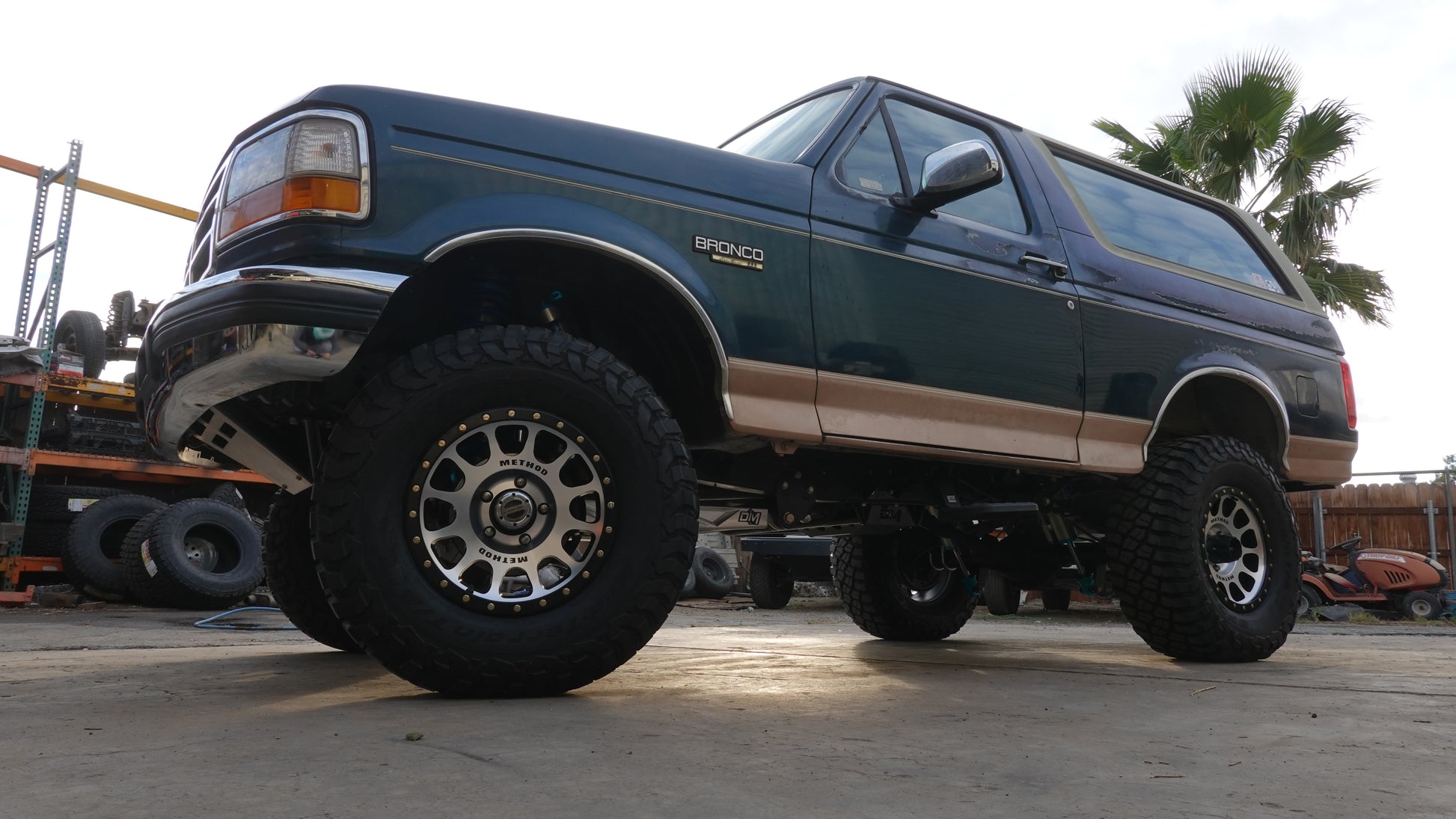

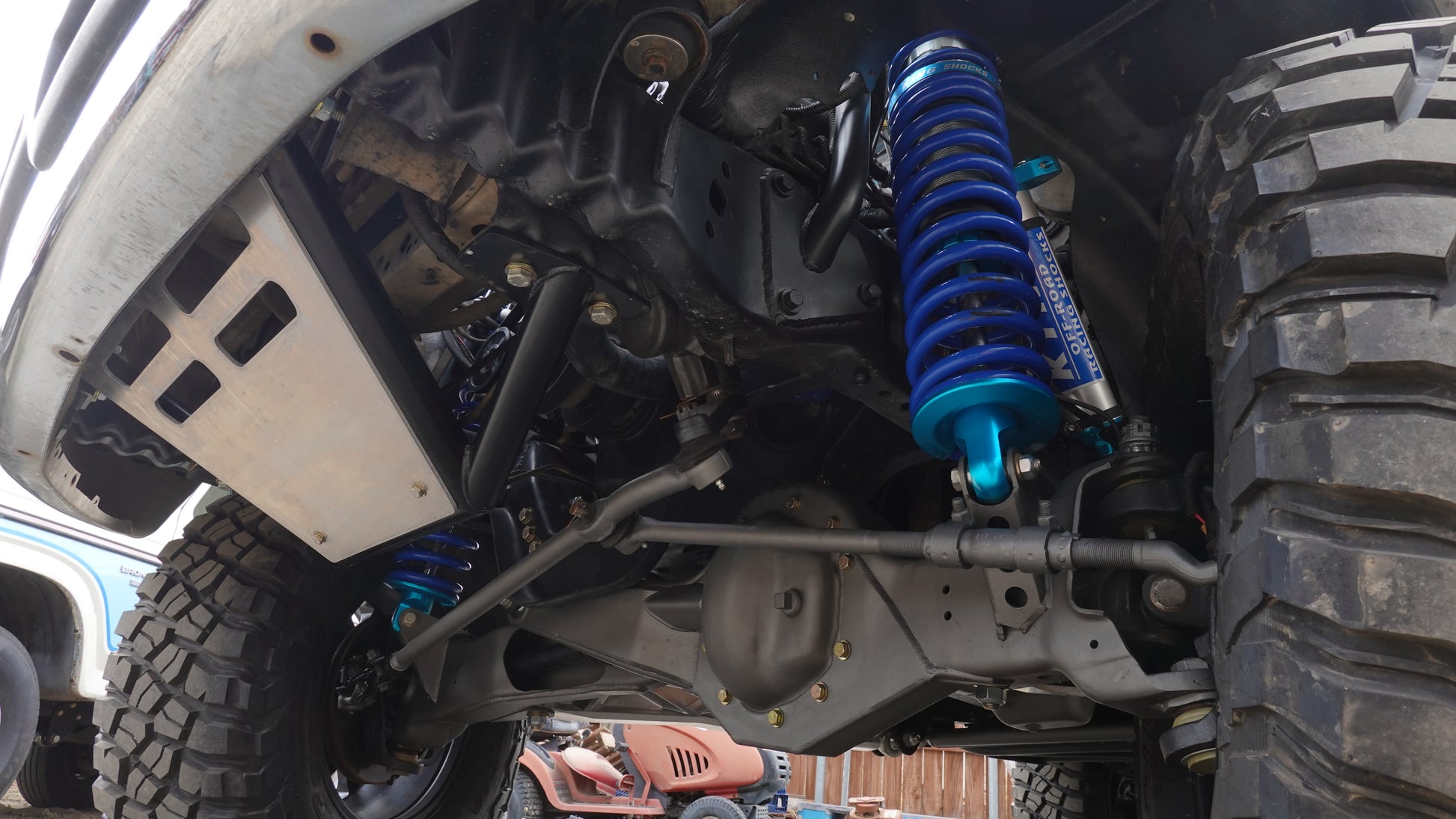

The Stage 3 kit is the perfect addition to the front of your Bronco or F-150. The kit offers 4 inches of lift with new radius arms and optional King Shocks coilovers. Plates are added to the TTB for strength and a uniball pivot conversion provides better articulation.



This stock width long travel kit provides 17 inches of wheel travel with clearance for a 35-inch tire. A mild drop pitman arm is provided to correct any extreme steering angles with the increase in travel and ride height. Also included are new alignment cams, a stainless steel extended brake line kit, limit straps and Billet Aluminum Radius Arms. You have the option to use your own 12-inch travel shocks or select a shock set choice from the drop down menu of King Shock options. Up to a 3.0 diameter shock bolts into place thanks to Desolates Bronco front shock hoop with engine crossover. Bump stops are also available for increased dampening.

**MCRD Spec**
The no corners cut, best all-around suspension package for Ford Broncos/F Series Trucks.

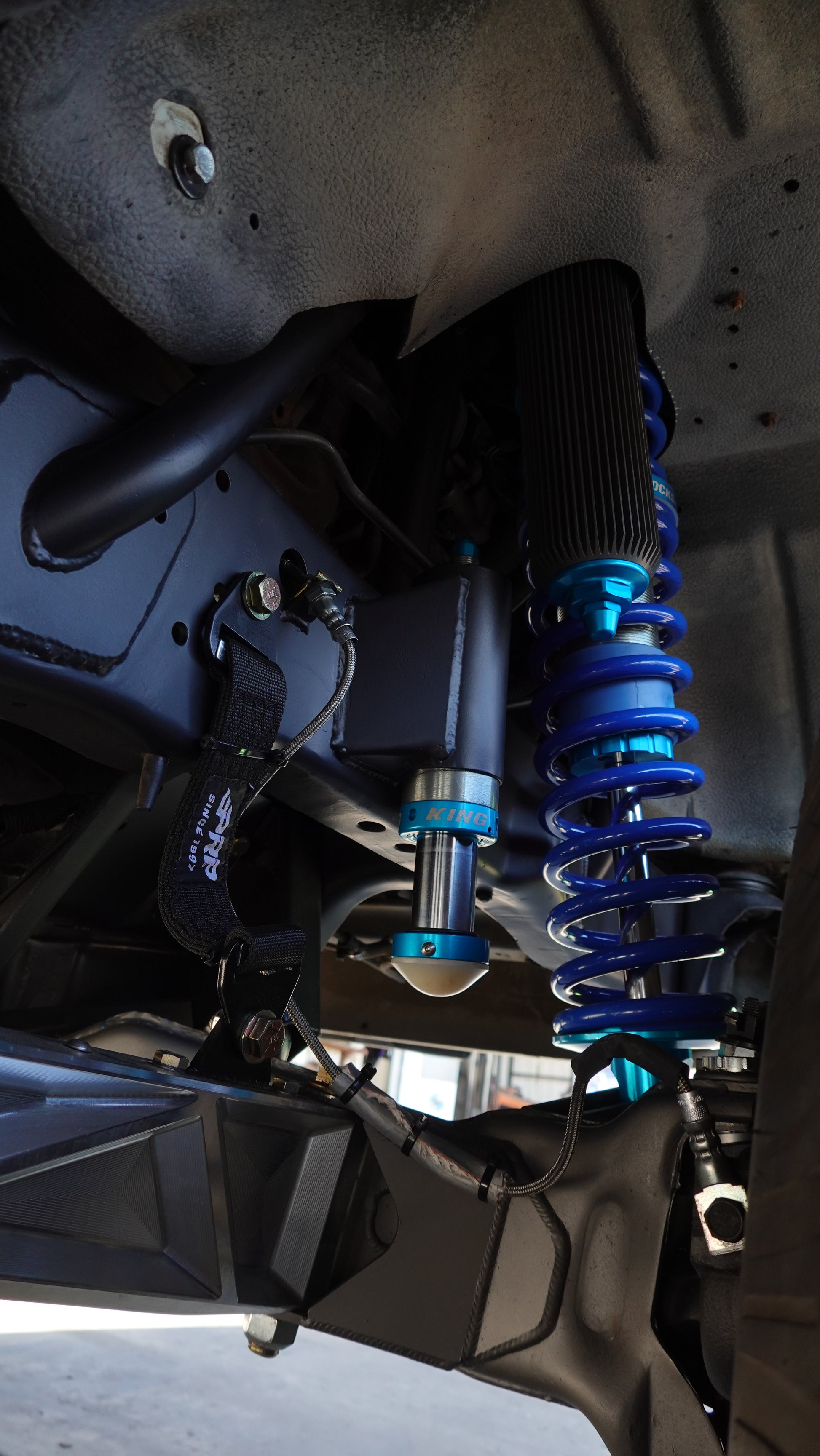

 **MCRD Spec Front Coil Overs**
- King 3.0 Race Series Shocks
- Internal Bypass Coil Over
- Piggyback Swivel Mount Finned Reservoirs
- Compression Clickers
- 2.5 x 2.5” Bump Stops
- Valved and tuned to meet the demands of daily driving and sends
- Built to Order

**2.5 Prerunner**
- King 2.5 Prerunner Series Shocks
- Front: King 2.5x12 Hose Remote Coil Overs
- Front: 2.0 x 2.0” Bump Stops

NOTE:

Professional install is highly recommended to ensure optimum performance and safety. Minor factory bumper trimming needed for 35-inch tire fitment. Kit requires additional welding and a vehicle alignment, which can be provided for an additional cost

SPECS:

3-5 inches of lift
17 inches of travel with stock width
Better front end articulation
TTB Plating and Uniball Pivots
Works with factory fenders
High performance coilover suspension
Front shock configuration fits up to a 3.0×12-inch coilover
Clears 35-inch tire



INCLUDES:

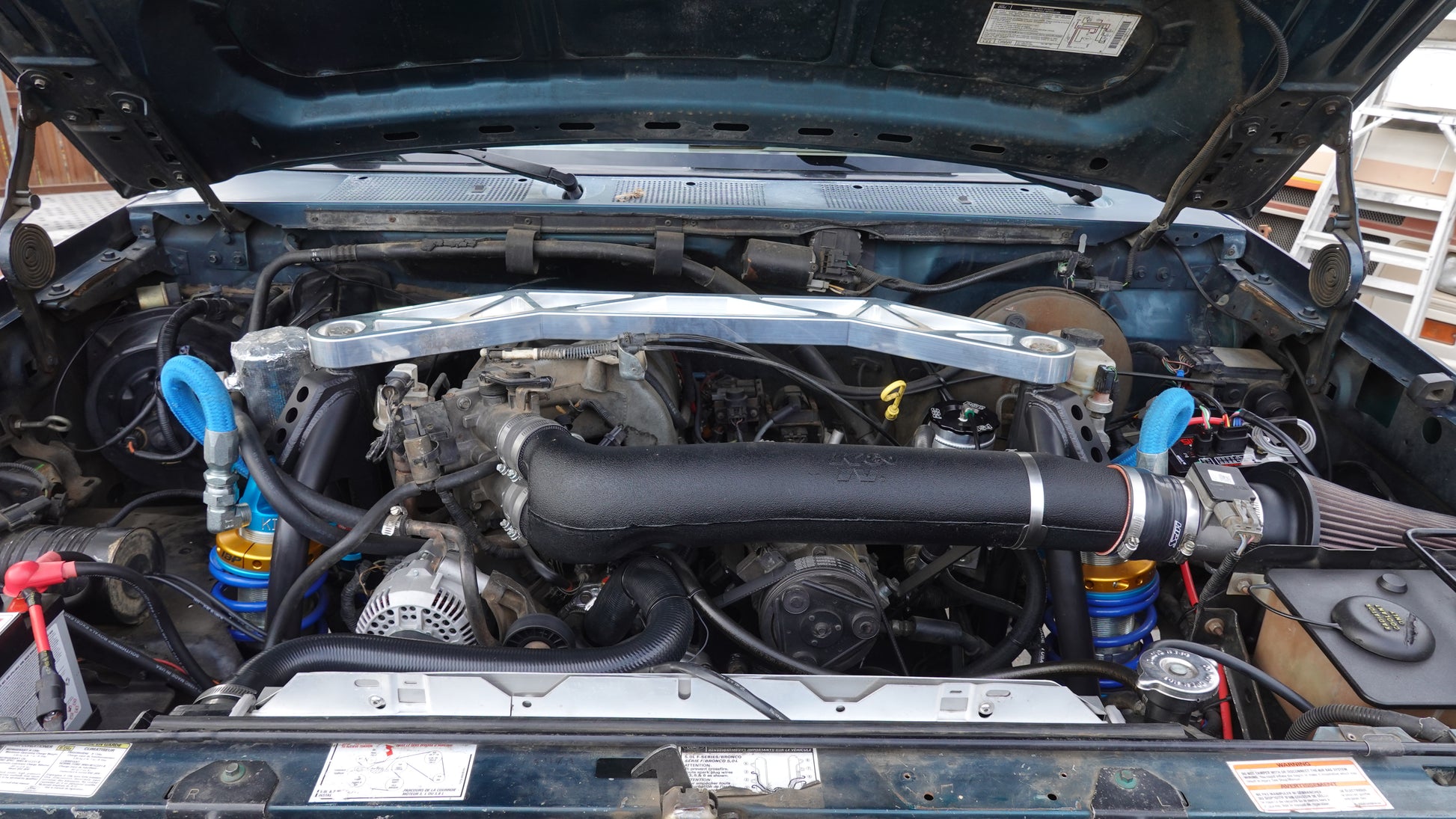

Desolate Motorsports Shock Hoops & Billet Engine Crossover
Desolate Motorsports Billet Aluminum Radius Arm (2x)
Stage 2 TTB (2x)
Mild Drop Pitman Arm (1x)
Radius Arm Crossmember (1x)
Alignment Cams (2x)
Desolate Front Stainless Brake Hose Kit (1x)
Limit Strap (2x)
● King Shocks (optional)
● King Bump Stops (optional)
All Necessary Hardware



King Shocks are built to order

APPLICATIONS: 80-96 Bronco, F-150
